Transland's FAA-approved STC Rapid Refueling System (a Single Point Fueling System)
Fuel Faster. Fuel Smarter. Fuel Safer.
Transland’s FAA-approved STC Single Point Fueling System stands in a class of its own. Transland delivers true cockpit-controlled precision — allowing pilots to select MAX, MID, or MIN fuel levels for each tank independently. Each side operates through its own valve and float switch for perfect balance and automatic shut-off, even when parked on uneven ground.
Now available for the Air Tractor AT-802/802A with 189-gallon fuel tank configuration. Additional Air Tractor models coming soon.
How It Works
1

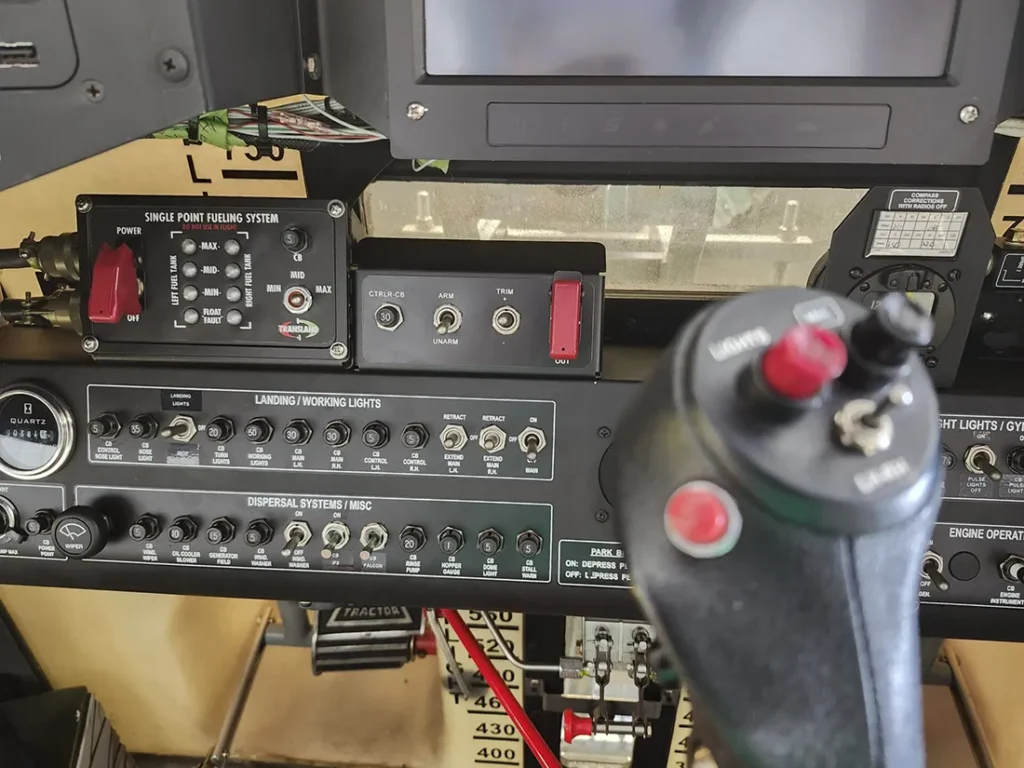

Cockpit Control Panel
Activate the system, select your fuel level, and monitor progress with clear indicator lights.
2
Fueling Valves
Solenoid-operated shutoff valves open and close automatically for controlled fueling and operate independently for each tank.
3
Ground-Level Fill Port
Containment enclosure with dry-break connection prevents spills and makes fueling quick and clean.
4
Float Switch Technology
Provides precise fuel measurements for both wing tanks to ensure accurate fill levels.
Features & Benefits
The Transland Rapid Refueling System gives pilots precise control over every fill. From a cockpit panel, the pilot selects a MAX, MID or MIN fuel level, and the system shuts off automatically when that level is reached. Each wing tank fills independently, so fuel stays accurately balanced even when the aircraft is parked on uneven ground. Float switches and valves stop fueling at the selected level every time.
The system is built for harsh environments. Its UL-certified valve meets Class I and II explosion-proof standards. The hoses and fittings meet military and aviation specifications, and the fuel hoses are TSO-certified. The enclosure has an anti-splash partition, a safety-cap lanyard and a drain, keeping operation clean and extending service life.
Features | Benefits |
|---|---|
Precision Fuel Control Cockpit selector: MAX / MID / MIN | Stops automatically at your chosen level to save time and prevent overfill. |
Independent Tank Control Each wing tank controlled separately | Helps maintain balanced fuel distribution — even on uneven surfaces. |
Automatic Shut-Off Valves + float switches work together | Prevents spills and reduces fueling oversight during busy turns. |
Built for Harsh Environments UL-certified valve, Class I & II | Safety-tested for hazardous fueling conditions and long service life. |
Aviation-Grade Components TSO fuel hoses & mil-spec parts | Reliability you can trust across demanding spray seasons. |
Robust Enclosure Design Cleaner fueling and easier maintenance between loads | Cleaner fueling and easier maintenance between loads. |
Future-Ready STC expansion in progress | Broader aircraft compatibility over time. |
Why Choose Transland?
Unmatched Value
Investing in Transland equipment means choosing quality and reliability. Our products are designed to last, reducing long-term costs and maximizing your return on investment. With over 70 years of experience, we ensure that each piece of equipment meets the highest standards of performance and safety.
Our Commitment
Innovation and excellence sets us apart. We offer cutting-edge technology that enhances productivity and efficiency, ensuring that your operations run smoothly and effectively. Our customer support is dedicated to providing you with the best service, ensuring your satisfaction and success.
Return on Investment
Transland products are engineered to deliver superior performance, reducing downtime and maintenance costs. The initial investment pays off through increased productivity and reduced operational expenses, making our equipment a smart choice for any agricultural aviation operation.
Ready To upgrade?
ransland products are sold and installed through authorized dealers worldwide. Find a dealer near you to get the Rapid Refueling System on your aircraft.
